Magnum 6KQE
Industrial Ethernet
Managed Heavy Duty Edge Switch
Magnum 6KQE is a Heavy Duty Edge Switch that occupies the same footprint as the Magnum 6KQ. The port configurations are different in the 6KQE. The base unit also has four 10/100 copper ports. Up to three 100Mb fiber ports or up to four more 10/100 copper ports (or combinations) may also be configured. 10 ports maximum. Up to 2 Gb ports are optional.
Both the Magnum 6KQ and the Magnum 6KQE contain the following features:
- Full-featured MNS-6K software in a small factory-floor package

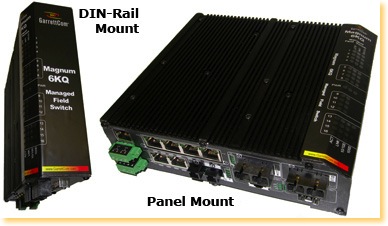

- Panel-mount brackets included, DIN-Rail optional, metal bracket for cable strain relief optional
- Highly configurable, all fiber port types, and up to 2 Gb with SFPs. Multi-mode and single mode.
- Advanced thermal design with heavy-duty aluminum case with a ribbed surface for heat dissipation (no fans); IP52 for environmental protection
- Conformal Coating, choice of light duty (6 mil) for humidity and heavy duty (14 mil) for oil, gas and petrochemicals.
- DC power at 12V, 24V, 48V, 125V, and 250V Dual-Source; PoE; AC optional
- PoE configurable, 4 ports (4 or 8 for the 6KQ)
- Meets IEC 61850 and IEEE 1613 Environmental Standard for Electric Power Substations
- Non-blocking wire speed performance on all ports, 802.1p QoS prioritization
- Comprehensive Magnum MNS-6K software includes: GUI for ease-of-use, SNMPv2, v3, RMON, Advanced Security, SNTP, Event Log, BootP, DHCP
- IGMP Snooping with Multicast Message Filtering or Pruning. IGMP-L2 for multicast management.
- Manages redundant rings with the S-Ring™ software product. RSTP and software Dual-Homing included. fiber ports or up to four more 10/100 copper ports (or combinations) may also be configured. 10 ports maximum. Up to 2 Gb ports are optional.
Web Pricing
MANAGED INDUSTRIAL ETHERNET SWITCHES & GigE SFP Fiber Transceivers
Model# 6KQE-AC Web Price Each: $589.00
(4) 10/100 RJ45
6KQE-AC Magnum6KQE Managed Edge Switch, base unit with four 10/100 copper ports.
AC power supply, 100 to 240vac, 47 to 63 Hz. Up to 3 100Mb fiber ports or up to four more
10/100 copper ports (or combinations) may also be configured,and up to 2 Gb ports are
optional. 10 ports max. Heavy duty metal case, IP53 for environmental protection, no
fans. Dual LEDs for all-around status viewing. Includes two AlarmContacts (1 PWR, 1
software controlled), metal bracket for vertical wall or panel mounting, DIN-Rail optional.
For licensed network management software information (MNS-6K, MNS-6K-SECURE,
S-Ring, etc.), see their respective data sheets.
---------------------------------------------------------------------------------------
Model# 6KQE-AC Web Price Each: $589.00
(8) 10/100 RJ45
6KQE-AC Magnum6KQE Managed Edge Switch, base unit with four 10/100 copper ports.
AC power supply, 100 to 240vac, 47 to 63 Hz. Up to 3 100Mb fiber ports or up to four more
10/100 copper ports (or combinations) may also be configured,and up to 2 Gb ports are
optional. 10 ports max. Heavy duty metal case, IP53 for environmental protection, no
fans. Dual LEDs for all-around status viewing. Includes two AlarmContacts (1 PWR, 1
software controlled), metal bracket for vertical wall or panel mounting, DIN-Rail optional.
For licensed network management software information (MNS-6K, MNS-6K-SECURE,
S-Ring, etc.), see their respective data sheets.
------------------------------------------------------------------------------
Model# 6KQE4-RJ45 6KQE configuration, add four 10/100 copper ports in 6KQE slot C Web Price Each $289.00
----------------------------------------------------------------
Model# 6KQE-AC WEB PRICE EACH: $589.00
6KQE, AC, (6) 10/100 RJ45 and (2) LC/MM fiber
6KQE-AC Magnum6KQE Managed Edge Switch, base unit with four 10/100 copper ports.
AC power supply, 100 to 240vac, 47 to 63 Hz. Up to 3 100Mb fiber ports or up to four more
10/100 copper ports (or combinations) may also be configured,and up to 2 Gb ports are
optional. 10 ports max. Heavy duty metal case, IP53 for environmental protection, no
fans. Dual LEDs for all-around status viewing. Includes two AlarmContacts (1 PWR, 1
software controlled), metal bracket for vertical wall or panel mounting, DIN-Rail optional.
For licensed network management software information (MNS-6K, MNS-6K-SECURE,
S-Ring, etc.), see their respective data sheets.
-----------------------------------------------------------------------------
Model# 6KQE4-2MLC 6KQE4-2MLC 6KQE configuration, add two 10/100 copper and two mm 100Mb LC fiber ports in 6KQE
slot C Web Price Each: $399.00
--------------------------------------------------------------------
Model# 6KQE-AC Web Price Each: $589.00
6KQE, AC, (6) 10/100 RJ45 and (2) LC/SM fiber
6KQE-AC Magnum6KQE Managed Edge Switch, base unit with four 10/100 copper ports.
AC power supply, 100 to 240vac, 47 to 63 Hz. Up to 3 100Mb fiber ports or up to four more
10/100 copper ports (or combinations) may also be configured,and up to 2 Gb ports are
optional. 10 ports max. Heavy duty metal case, IP53 for environmental protection, no
fans. Dual LEDs for all-around status viewing. Includes two AlarmContacts (1 PWR, 1
software controlled), metal bracket for vertical wall or panel mounting, DIN-Rail optional.
For licensed network management software information (MNS-6K, MNS-6K-SECURE,
S-Ring, etc.), see their respective data sheets.
---------------------------------------------------------------------
Model# 6KQE4-2SLC 6KQE configuration, add two 10/100 copper and two 100Mb single-mode 20KmLC fiber
ports in 6KQE slot C Web Price Each: $799.00
------------------------------------------------------------------
Model# 6KQE-AC WEB PRICE EACH: $589.00
6KQE, AC, (8) 10/100 RJ45 and (2) GigE SFP fiber slots
6KQE-AC Magnum6KQE Managed Edge Switch, base unit with four 10/100 copper ports.
AC power supply, 100 to 240vac, 47 to 63 Hz. Up to 3 100Mb fiber ports or up to four more
10/100 copper ports (or combinations) may also be configured,and up to 2 Gb ports are
optional. 10 ports max. Heavy duty metal case, IP53 for environmental protection, no
fans. Dual LEDs for all-around status viewing. Includes two AlarmContacts (1 PWR, 1
software controlled), metal bracket for vertical wall or panel mounting, DIN-Rail optional.
For licensed network management software information (MNS-6K, MNS-6K-SECURE,
S-Ring, etc.), see their respective data sheets.
------------------------------------------------------------------
Model# 6KQE4-RJ45 6KQE configuration, add four 10/100 copper ports in 6KQE slotC Web Price Each: $289.00
Model# 6KQE-2GSFP 6KQE Gig module, two SFP pluggable open transceiver ports for user-selectable SFP
Gig transceivers in each, configure in 6KQE slot D only. Web Price Each: $489.00
----------------------------------------------------
Model# 6KQ-24VDC Web Price Each: $789.00
6KQE, AC, (4) 10/100 RJ45, (8) LC/MM fiber and (2) GigE SFP
fiber slots
Model# 6KQ-24VDC Magnum6KQ Configurable Managed Field Switch, base unit with 24VDC power supply
and four 10/100 copper ports. May be factory-configured with a variety of 10/100/1000
Mb fiber and copper port connector types via selection froma family of 6KQ port
modules per the 6KQ Configuration Guide. 16 ports max. Heavy duty fully enclosed
aluminum case designed with ribbed surface for max heat dissipation, used as a heat
sink, rated IP53 for environmental protection, no fans. Dual LEDs for all-around status
viewing. Includes two AlarmContacts (1 PWR, 1 software controlled), metal bracket for
vertical wall or panel mounting, DIN-Rail optional. Wire speed filtering and forwarding
across all ports. For licensed network management software information (MNS-6K,
S-Ring, Dual-Homing, IGMP-L2, Security, etc.), see their respective data sheets.
--------------------------------------------------------------------
Part# 6KQ4-MLC 6KQ module, four 100Mb 2kmmulti-m. LC fiber ports, slots B and/or D
Web Price Each: $789.00
Part# 6KQF-4MLC 6KQ module, four 100Mb 2kmmulti-m. MLC fiber ports, factory slot C fiber-only
Web Price Each: $689.00
Part# 6KQ-2GSFP 6KQ Gig module, two SFP pluggable open transceiver ports for user-selectable SFP Gig
transceivers in each, configure in 6KQ slot D only
Web Price Each: $479.00
-----------------------------------------------------
GigE SFP Fiber transceivers
Part# SFP-SX Gig Fiber Optic SFP transceiver, 1000Mb SX, 850nm wavelength, 550meters distance
nominal, 2Km per Power Budget Web Price Each: $189.00
Part# SFP-ESX Gig Fiber Optic SFP transceiver, 1000Mb Extended SX, 1310nmwavelength, 2km
distance nominal, 3Km per Power Budget Web Price Each: $249.00
Part# SFP-LX10 Gig Fiber Optic SFP transceiver, 1000Mb LX, 1310nmwavelength, 10kmdistance
nominal, 22Km per Power Budget Web Price Each: $289.00
Part# SFP-LX25 Gig Fiber Optic SFP transceiver, 1000Mb LX, 1310nmwavelength, 25kmdistance
nominal, 40Km per Power Budget Web Price Each: $589.00
Part# SFP-ZX40 Gig Fiber Optic SFP transceiver, 1000Mb GX, 1550nmwavelength, 40kmdistance
nominal, 60Km per Power Budget Web Price Each: $1,289.00
===============================================
