Magnum™ 6K32FC and 6K32FRC Fiber configurable Convection cooled Industrial Managed Ethernet Network Switches by Garrettcom®

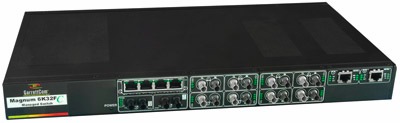

The Magnum™ 6K32FC Switch provides rack-mount space efficiency and
rich fiber port configurability in a convection-cooled unit (no fans) for
heavy duty industrial applications where the presence of dust and dirt
may inhibit normal cooling. Moisture- and corrosion- protecting Conformal
Coating is optional. New static thermal design techniques (patent pending)
enable the 6K32FC to deliver high reliability even at extended operating
temperatures. Special rack-mount cooling techniques include:
- internal heat barriers confine heat to areas where it is least detrimental
- large power supply heat sinks to dissipate the power heat loss
- aluminum case material used for efficient heat conduction & distribution
- perforated case areas enable some vertical air flow via convection
- cooling space above and below the unit in the rack, 1/2U top and bottom
- multiple heat sinks distribute heat from internal electronic components
- premium high-efficiency components used to minimize heat generation

stacks_image_26_1
1-800-843-6036
stacks_image_29_1

The highest energy efficiency of any rack-mount industrial switch <br />not only enables high reliability, but also makes the 6K32FC a “green” <br />environmentally friendly product. <br />The four configuration slots in the Magnum 6K32FC provide the <br />flexibility for network designers to configure up to sixteen 100 Mb standard <br />ST or SC fiber ports, and/or some 10 Mb fiber ports, and/or one to 8 <br />Gigabit ports, or some copper ports, or combinations including 100Mb <br />SFF fiber ports. SFP, GBIC, and fixed gigabit ports can be configured for <br />a variety of Gigabit fiber and copper cabling types and distances. Copper <br />ports can optionally be Power-Sourcing PoE. There are over 30 modules <br />for various port types and combinations to choose from. <br />Magnum 6K32FC Managed Switches come with LAN software <br />support including SNMP management, Secure Web Management, IGMP, <br />graphical user interface (GUI), redundant LANs support, and many network <br />management security and ease-of-use features. See the Managed Networks <br />Software (MNS-6K and MNS-6K-SECURE) datasheets for more details. <br />Magnum 6K32FCs are ideal for building a fiber-rich industrial net- <br />work for use in harsh industrial applications in power utilities, plants and <br />factories and mines, transportation, telecommunications, video surveil- <br />lance and oil & gas facilities. The networks commonly include industrial <br />IEDs, RTUs, HMI computers, routers, video surveillance cameras, smaller <br />field switches, and other managed switches for multiple Gigabit back- <br />bone interconnections or redundancy. <br />Magnum 6K32FC Managed Switches have rugged metal cases for <br />regular or “Reverse” rack-mounting, and auto-ranging power supplies <br />for operation with standard AC power worldwide, or internal DC power <br />supply choices. The 6K32FCs and all other Magnum products are designed <br />and manufactured in the USA and have a three year warranty.


DATA SHEET

CONFIGURATION GUIDE

PoE Modules

Features
•Convection-cooled 1U
rack-mount package,
for dusty and dirty in-
dustrial environments
•Provides four modular
slots for configuration
flexibility of up to 8 Gb
ports or 16 standard fi-
ber ports or 32 copper
ports (some PoE)
• Energy-efficient thermal
design enables opera-
tion at extended tem-
peratures with high reli-
ability
• Choice of Regular or
“Reverse” case designs
provide power and port
cables in the front or in
the rear
•Power supply choices:
24VDC, -48VDC, 110-
250VDC, dual source
DC, dual supply
125VDC, and AC

Magnum™ 6K32FC and 6K32FRC Fiber configurable Convection cooled Industrial Managed Ethernet Network Switches by Garrettcom®
The highest energy efficiency of any rack-mount industrial switch <br />not only enables high reliability, but also makes the 6K32FC a “green” <br />environmentally friendly product. <br />The four configuration slots in the Magnum 6K32FC provide the <br />flexibility for network designers to configure up to sixteen 100 Mb standard <br />ST or SC fiber ports, and/or some 10 Mb fiber ports, and/or one to 8 <br />Gigabit ports, or some copper ports, or combinations including 100Mb <br />SFF fiber ports. SFP, GBIC, and fixed gigabit ports can be configured for <br />a variety of Gigabit fiber and copper cabling types and distances. Copper <br />ports can optionally be Power-Sourcing PoE. There are over 30 modules <br />for various port types and combinations to choose from. <br />Magnum 6K32FC Managed Switches come with LAN software <br />support including SNMP management, Secure Web Management, IGMP, <br />graphical user interface (GUI), redundant LANs support, and many network <br />management security and ease-of-use features. See the Managed Networks <br />Software (MNS-6K and MNS-6K-SECURE) datasheets for more details. <br />Magnum 6K32FCs are ideal for building a fiber-rich industrial net- <br />work for use in harsh industrial applications in power utilities, plants and <br />factories and mines, transportation, telecommunications, video surveil- <br />lance and oil & gas facilities. The networks commonly include industrial <br />IEDs, RTUs, HMI computers, routers, video surveillance cameras, smaller <br />field switches, and other managed switches for multiple Gigabit back- <br />bone interconnections or redundancy. <br />Magnum 6K32FC Managed Switches have rugged metal cases for <br />regular or “Reverse” rack-mounting, and auto-ranging power supplies <br />for operation with standard AC power worldwide, or internal DC power <br />supply choices. The 6K32FCs and all other Magnum products are designed <br />and manufactured in the USA and have a three year warranty.
DATA SHEET

CONFIGURATION GUIDE

PoE Modules

The highest energy efficiency of any rack-mount industrial switch
not only enables high reliability, but also makes the 6K32FC a “green”
environmentally friendly product.
The four configuration slots in the Magnum 6K32FC provide the
flexibility for network designers to configure up to sixteen 100 Mb standard
ST or SC fiber ports, and/or some 10 Mb fiber ports, and/or one to 8
Gigabit ports, or some copper ports, or combinations including 100Mb
SFF fiber ports. SFP, GBIC, and fixed gigabit ports can be configured for
a variety of Gigabit fiber and copper cabling types and distances. Copper
ports can optionally be Power-Sourcing PoE. There are over 30 modules
for various port types and combinations to choose from.
Magnum 6K32FC Managed Switches come with LAN software
support including SNMP management, Secure Web Management, IGMP,
graphical user interface (GUI), redundant LANs support, and many network
management security and ease-of-use features. See the Managed Networks
Software (MNS-6K and MNS-6K-SECURE) datasheets for more details.
Magnum 6K32FCs are ideal for building a fiber-rich industrial net-
work for use in harsh industrial applications in power utilities, plants and
factories and mines, transportation, telecommunications, video surveil-
lance and oil & gas facilities. The networks commonly include industrial
IEDs, RTUs, HMI computers, routers, video surveillance cameras, smaller
field switches, and other managed switches for multiple Gigabit back-
bone interconnections or redundancy.
Magnum 6K32FC Managed Switches have rugged metal cases for
regular or “Reverse” rack-mounting, and auto-ranging power supplies
for operation with standard AC power worldwide, or internal DC power
supply choices. The 6K32FCs and all other Magnum products are designed
and manufactured in the USA and have a three year warranty.

  • Convection-cooled 1U rackmount rugged package, for dust-and-dirty industrial environments
  • Offers four modular slots for configuration flexibility of up to 8 Gigabit ports or 16 standard fiber ports or 32 copper ports (some PoE)
  • Radical new static thermal techniques (patent-pending) are in the design
  • Energy-efficient thermal design enables operation at extended temperatures with high reliability.
  • "Reverse" case design provides LEDs for status monitoring in the front, provides power and port cables in the rear
  • Input power choices of 24VDC, -48VDC, 110-250VDC power, dual source, or AC
  • DC dual power supply optional
  • Exceeds IEEE 1613 and IEC 61850 Environmental Standards for Substation Automation Products
  • Non-blocking wire speed performance on all ports, 802.1p QoS prioritization
  • Comprehensive Magnum MNS-6K software includes: RMON, SNMP, Telnet, IGMP, VLANs (Port-based and Tag-based), GVRP, Port-mirroring, CLI, Secure Web Management, Password Security, Port Security, SNTP, Event Log, BootP, DHCP
  • IGMP Snooping with Multicast Message Filtering or Pruning
  • Manages redundant rings with the S-Ring™ software product, Spanning Tree Protocol (STP) and RSTP
  • 6KP7-1GSFP6RJ in 6K32FC Switches Pictorial
