Magnum™ 6K32T and 6K32TR High Port Density Managed Gigabit Industrial Heavy Duty 32 port Managed Network
Switch Ethernet Switches by Garrettcom®
The Magnum™ 6K32T and 6K32TR (Reverse Model) Managed
Switches offer up to 32-ports in a 1U rack-mount package, ideal for
heavy duty Carrier Class and Industrial applications that require high-
port density to save in cost and rack space. The 6K32T and 6K32TR
provide 16 fixed 10/100 Mb copper ports plus two configuration
slots. The modular slots provide the flexibility to configure up to
sixteen 100 Mb fiber ports, and/or some 10 Mb fiber ports, and/or
one to four Gigabit ports, or some more copper ports. Standard
GBIC ports can be configured for a variety of Gigabit fiber cabling
types and distances.
Magnum 6K32T and 6K32TR Managed Switches come with
LAN software support including SNMP management, SNMPcTM and
OpenviewTM for Windows, Secure Web Management, redundant
LANs support, and many network management security and ease-
of-use features. See the Managed Networks Software (MNS-6K)
datasheet for additional details on the comprehensive set of
software packages and options that are used across the Magnum
6K Switches family of products.
High performance hardware features include non-blocking
wire speed on all ports and 802.1p QoS Traffic Prioritization.
Magnum 6K32Ts and 6K32TRs are “plug-and-play” ready for use as
backbone switches where a mix of bursty data traffic and priority
streaming traffic for VoIP and audio/video applications is present.
Fan cooling provides long operating life and increased system
availability.
slots. The modular slots provide the flexibility to configure up to sixteen 100 Mb fiber ports, and/or some 10 Mb fiber ports, and/or
one to four Gigabit ports, or some more copper ports. Standard GBIC ports can be configured for a variety of Gigabit fiber cabling
types and distances.
Magnum 6K32Ts and 6K32TRs are ideal for building a
switched network infrastructure when used in applications
connected to communications computers, routers, hubs, or other
switches. Designed for use in Carrier Ethernet and Industrial
networks with segments requiring multiple Gigabit backbone
interconnections among network centers, the switches are easy to
install and operate. Addresses of attached nodes are automatically
learned and maintained, adapting the switching services to network
changes and expansions to provide plug-and-play operation.
Magnum 6K32T and 6K32TR Managed Switches have rugged
metal cases and auto-ranging power supplies for operation with
standard AC power worldwide. Internal DC power supplies are
optional. The 6K switches and all other Magnum products are
designed and manufactured in the USA with a three year warranty.
1-800-843-6036
Features
•Provides 16 fixed cop-
per ports and two
modular slot for con-
figuration flexibility of
up to 4 GB ports or 32
total ports
•Dense 1U rack-mount
package, NEBS compli-
ant member of Magnum
6K family
• Two modular slots for
combinations of Giga-
bit, fiber at 100Mb and
10 Mb, and more 10/100
copper ports
• Non-blocking wire
speed performance on
all ports, 802.1p QoS
prioritization
•Options include 24VDC,
-48VDC,125VDC power,
dual source, or AC, ETSI
and 23" Telco rack
mount brackets
Magnum™ 6K32T and 6K32TR High Port Density Managed Gigabit Industrial Heavy Duty 32 port Managed Network
Switch Ethernet Switches by Garrettcom®

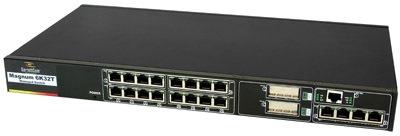

6K32T shown
[Data Sheet] [Configuration Guide] [PoE Modules]
- The 6K32T and the 6K32TR (Reverse model with ports and power supply in the rear, LEDs in the front) provide 16 fixed copper ports, and two modular slots for configuration flexibility of up to 32 total ports
- The 6K32T and 6K32TR are rugged managed gigabit Ethernet switches.
- Dense 1U rack-mount package, NEBS and 61850 compliant members of Magnum 6K family
- Modular slots for combinations of 100Mb, 10 Mb, Gigabit, PoE, and more 10/100 copper ports
- Non-blocking wire speed performance on all ports, 802.1p QoS prioritization
- Comprehensive Magnum MNS-6K software includes: RMON, SNMP, Telnet, IGMP, VLANs, LACP, GVRP, Port-mirroring, CLI, Secure Web Management, Password Security, Port Security, SNTP, Event Log, BootP, DHCP
- IGMP Snooping with Multicast Message Filtering or Pruning
- Manages redundant rings with the S-Ring™ software product, Spanning Tree Protocol (STP) and RSTP
- Options include -48VDC, 24VDC, 125VDC power, dual source, or AC, "reverse" rack mount, ETSI and 23" Telco brackets.
